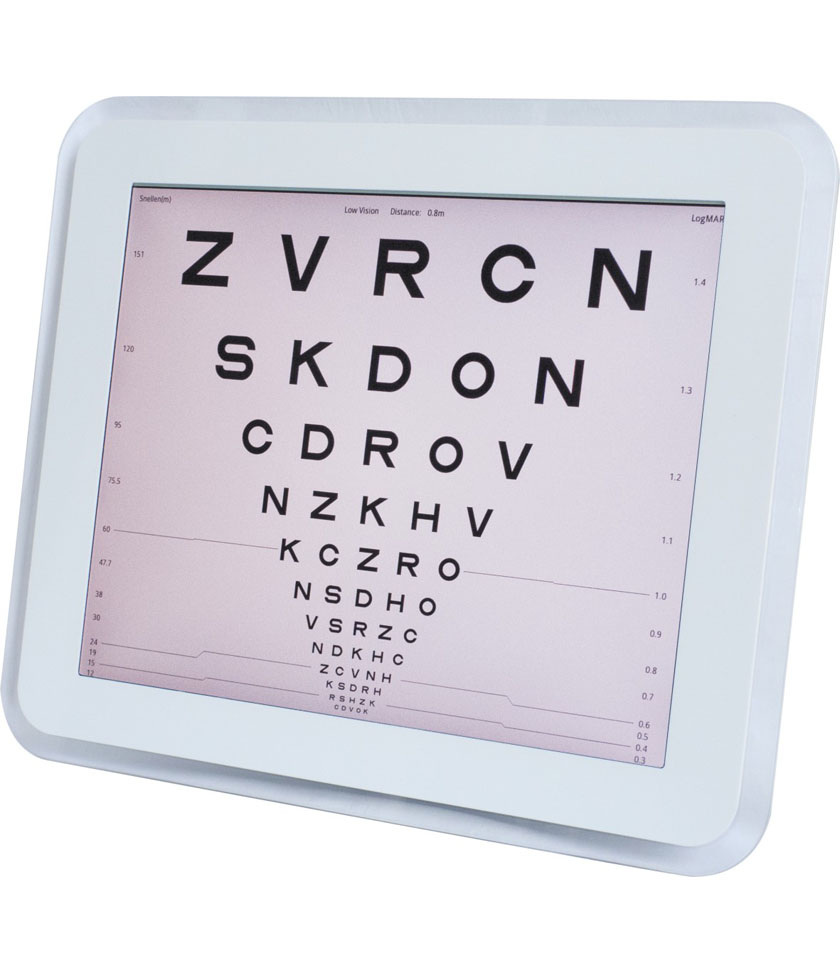

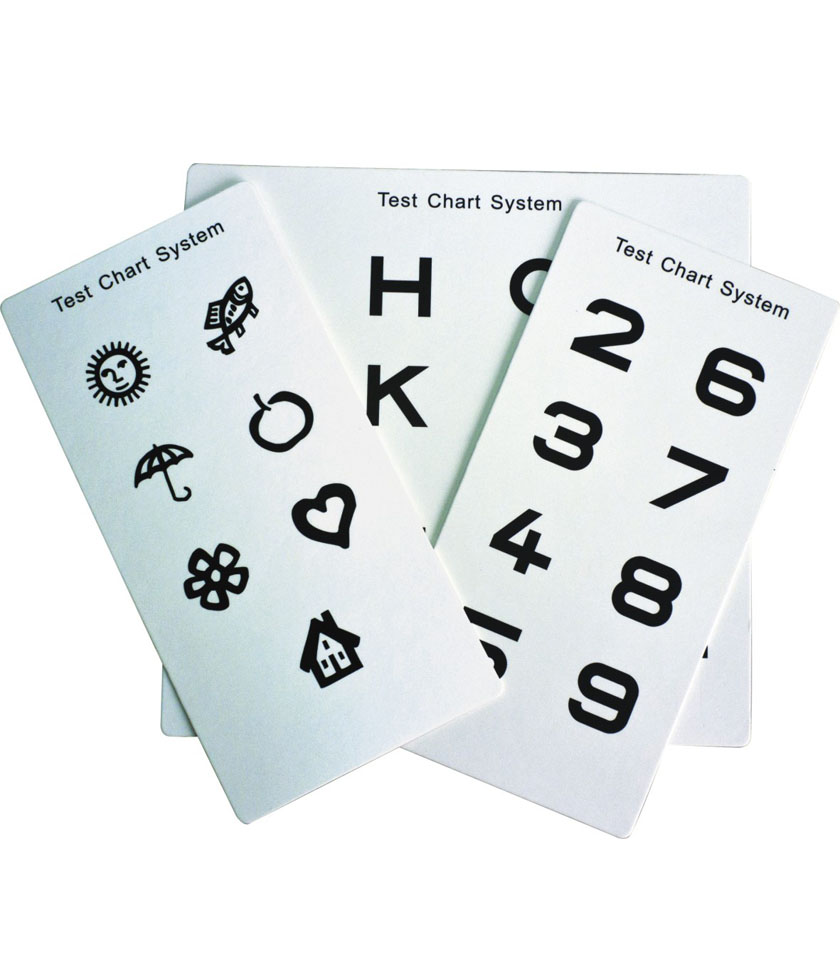

•Including sufficient test charts
5 standard optotypes (can be changed randomly), 13 special
test charts, 7 different masks for optoytpes
•Clear and sharp screen display
Use vectorgraph, the brightness reaches 160cd/m²(min).
•Faster operating speed
Improved IC technique makes optotypes random changing much
faster. Auto memory design helps to change optotype in no delay.
•Easy to upgrade
The newest program can be upgraded easily, and also the video
in the USB disk can be played.
•Small size, ultra-thin design
LED 17-inch XGA Panel, 1280x1024 pixels, 160CD/m² Optotype……E(Tumbling), C(Landolt),Alphabet, Numbers, Children Visual unit…...........Decimal(0.04~2.0), Snellen(ft, 20/20)(500~10), Snellen (M, 6/6)(150~3), LogMAR(-0.3~1.4), 5-Grade(3.6~5.3) Distance…………………………………....…2M~7M (in steps of 0.1m) 6ft~24ft(in steps of 0.5ft) Low vision.........................................0.6M~1.5M(in steps of 0.1m) Mask type…...............Single mask, Horizontal mask, Vertical mask, Red/Green mask, White/Black mask, Contrast adjustment, Red/Green adjustment Special test masks…………..........…Ishihara Test, Cross cylinder, Astigmatism Test, Cross Grid, Fixation point Test, Red/Green Panel, Worth Test, Red/Green Balance, Traffic light, Coincidence Test, Stereo Test, Schober Test, ETDRS Other functions…..Contrast Test function, Contrast Sensitivity Test, Ramdomization Optotypes Playing function, Real time R/G setting function, Video playing function, Mirror function, Screen-saver function, standby function
Input ……………………..power 110~230V AC +/-10%, 50/60Hz Output power..............................................................12V DC Power consumption............................................20 Watt(max) Remote controller.............................IR remot, 2xAAA batteries Packing dimension.............550 mm X150 mm X570mm (L/W/H) Net Weight......................................................................3kgs Gross Weight..................................................................6kgs
